Versaline VL

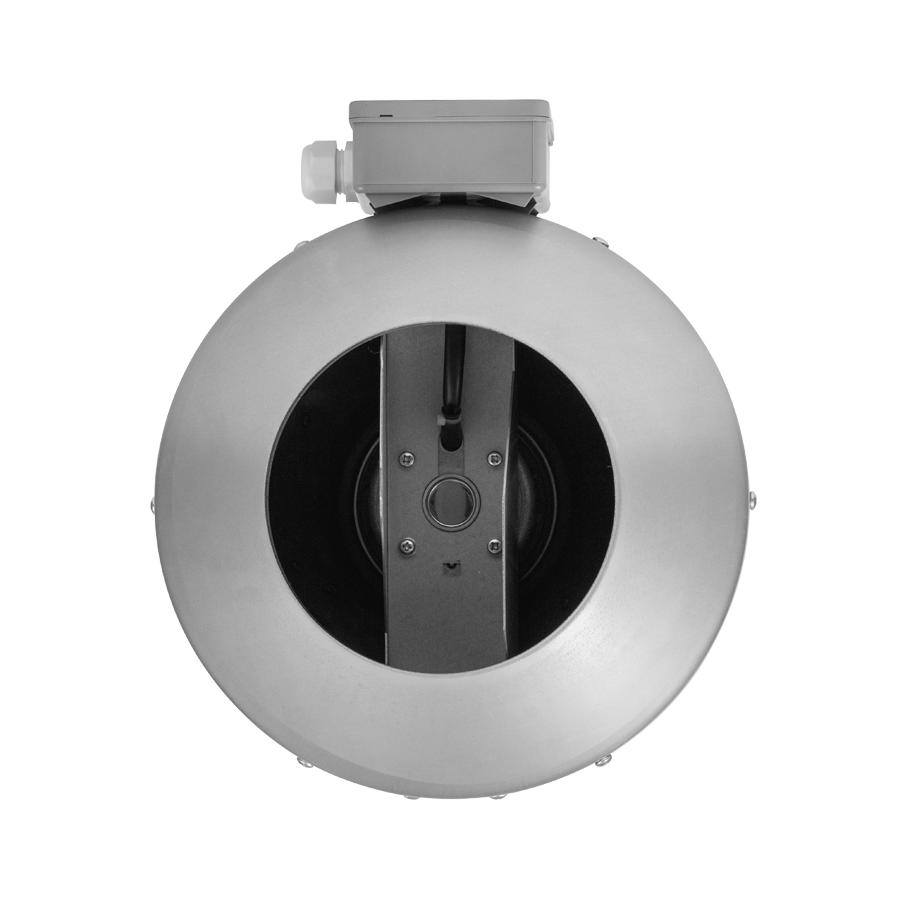

Centrifugal In-line Fan

All metal inline centrifugal fan that is ideally suited to a wide range of commercial and industrial applications. They provide the ideal solution for high performance requirements in low airflow, medium pressure systems.

Standard Sizes from 100mm – 315mm.

Compact design, combined with high performance makes it ideal for mounting in tight spaces.

The backward curved centrifugal impeller is designed to be non-overloading and self-cleaning ensuring efficiency.

IP44

Need some help?

Email or call the team on 01384 275771

The Versaline case and mount have a galvanised pressed sheet steel construction, providing a robust, long-lasting and corrosion-resistant life. The inlet and outlets feature spigots that are 25mm long to enable the fixing of rigid and flexible ductwork.

The motor is a highly efficient external rotor design; matched to the aerodynamic performance of the impeller with sealed-for-life ball bearings, allowing the fan to be mounted at any angle.

Motors are protected to IP44 with Class F insulation; suitable for speed control and ambient operating temperatures up to +50℃ with built-in thermal overload protection. Non-self-resetting thermal cut-outs are fitted in accordance with EN60335-2-80. Motors are wound for 230V/1Ph/50Hz/60Hz supply.

Electrical connections are made by an IP54 terminal box fitted to the outside of the fan casing.

Speed control shall be via a stepped transformer or 3-speed switch depending on the model.

Units are to be designed and manufactured with procedures as defined in BS EN ISO 9001. All Versaline VL units are to be tested to ISO 5801 (airside performance) and BS848 Part 2 (sound performance).

VL Drawing

Model A B C D E F G Weight kg
VL100 98 204 130 237 284 270 47 4
VL125 123 202 130 237 284 270 47 4
VL150 148 195 165 278 326 312 47 4
VL200 198 242 190 333 392 372 100 6
VL250 248 210 190 333 392 372 100 5
VL315 313 280 227 400 460 440 100 9

Model Speed r/min Airflow at 0pa Input kW Amps dBA @3m
VL100 2725 0.060 0.025 0.14 42
VL125 2690 0.059 0.026 0.14 43
VL150 2595 0.130 0.062 0.28 52
VL200 2565 0.243 0.14 0.46 46
VL250 2555 0.232 0.105 0.48 47
VL315 2190 0.342 0.156 0.69 46

  • Data provided is at standard air density of 1.2 kg/m³.
  • Overall static efficiency, r/min and FMEG values are per ISO 12759.
  • Installation Category C.
  • Classified to Ecodesign 1253/2014 as NRVU, UVU, 2018 compliant.
  • Peak Amps @ 230V / 1PH / 50Hz.
  • The overall A-weighted sound pressure level is at a distance of 3m with spherical free-field propagation.
  • It is expressed in dB re-20μPa and is presented for comparative purposes only

Each Versaline unit has a 1-Year parts-only warranty. For full details and if you need to claim, check here.
