PIV ONE Plus+
Loft Mounted Positive Input Ventilation Unit with Heater & Advanced Control
Whole-house Positive Input Ventilation unit designed to introduce fresh, clean and filtered air into the dwelling. This dilutes, displaces and replaces the internal stale, contaminated & humid air. Suitable for floor or ceiling installation, in any position.
Improves indoor Air Quality
Better health and reduce heating costs. Find out more
Effective in improving indoor air quality, curing condensation and mould problems and reducing Radon gas concentration. Find out more here.
Two filters ensure that the incoming air is clean, removing dust, pollen and external air pollutants.
Built-in heater to temper the incoming air for ultimate comfort.
Additional IAQ filter upgrade available to filter to PM2.5 (diesel particulates).
Need some help?
Email or call the team on 01384 275771
Want to know the cost of using this fan? Put your rate in our running cost calculator.
The PIV ONE Plus+ positive input ventilation system provides fresh, high-quality filtered air whilst effectively solving condensation issues and diluting harmful pathogens. Installation is easy and it’s also incredibly cost-effective.
This advanced system operates continuously to maintain a fresh and healthy indoor environment. When the humidity threshold is detected, the fan automatically boosts its speed, effectively reducing excess moisture and preventing condensation build-up. This intelligent feature ensures optimal air quality, minimises the risk of mould and mildew growth and promotes a comfortable living space.
To find out more about how Positive input ventilation (PIV) works, read here or ask us!.
Features and Benefits
- The Plus+ model brings further enhancements to our standard model:
- Heating element: An integral heater automatically tempers the incoming air when needed (find out more about PIV heaters here).
- Standby mode: Automatically activates to prevent undesired warm air from entering the dwelling (e.g. during summer).
- Heat recovery mode: The unit can be set to increase its speed if your loft has benefitted from solar gain, bringing in more warm air.
- Control: Remote selection of the speed and heating element via an optional dedicated control switch.
Highly effective at reducing condensation and improving indoor air quality.
- Double filtration as standard, ensuring that the incoming air is clean; removing dust, pollen and external air pollutants.

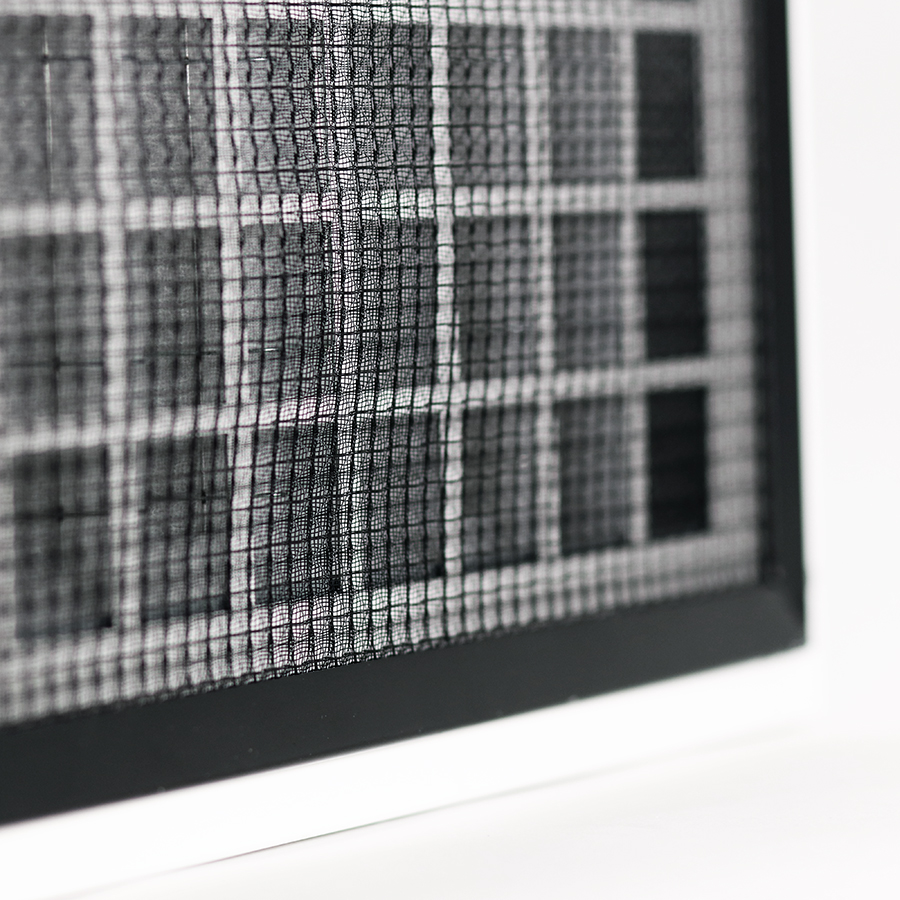

- The external washable pre-filter features an integral magnet system to remove and clean easily (without the need for tools) . This pre-filter stops dust from being pulled into the primary filter, which would restrict filtration and reduce the filter’s lifetime.
- Internal ISO Coarse 60% (G4) filter as standard, perfect for dust, mould spores and general pollutants.
- For high-traffic areas, this can be upgraded to an IAQ filter to remove diesel fumes.
- Discreet ceiling diffuser with adjustable blanking plates to direct the airflow to suit the needs of tenants.
- Pre-wired, pre-mounted fixing points and multiple modes of operation selectable at the time of deployment mean a fast, versatile installation.
- Acoustic self-extinguishing foam lining for sound attenuation.
Specification
- Galvanised sheet steel casing, powder-coated in white (RAL 9010).
- Durable, solid ABS plastic top cover.
- The unit is designed for continuous running with a highly efficient EC motor which has integral thermal protection, is mounted on sealed-for-life ball bearings and anti-vibration supports.
- Forward curved centrifugal impeller is dynamically balanced and directly driven by the motor to provide a smooth airflow through the unit.
- The top cover is easily removable for inspection and maintenance.
- Integral 500w heating element.
- Acoustic self-extinguishing foam lining for sound attenuation.
- IPX4 protection degree.
- Modern design ceiling diffuser made of high-quality ABS technopolymer.
- Supplied with 2.5m flexible duct to connect ventilation unit and diffuser.
mODES OF Operation
At the time of installation, the unit can be configured with the following modes of operation:
- Single-Speed.
- Two-speed operation via remote switch (not supplied).
- High-speed override via a remote switch or ambient sensor e.g. AERAULIQA HUMIDITY SENSOR.
- High-speed override via a remote switch or ambient sensor (e.g. SEN-HY accessory).
- Remote selection of the speed and heating element via dedicated AERAULIQA P1 CONTROL SWITCH (accessory).
- Controllability via ModBus for BMS.
Tested
- Tested to the latest standards: units are tested in the TÜV Rheinland recognised laboratory at Aerauliqa, meaning accurate, up-to-date information on electrical safety, performance and noise level that can be relied upon.
- Designed and manufactured in accordance with EN60335-2-80 (Low Voltage Directive) and the EMC Directive (Electromagnetic Compatibility).
| Model | Weight kg |
|---|---|
| PIV ONE Plus+ | 8.3 |
Dimensions in mm.
| Model | Power consumption W max | m3 /h at 10pa | Sound pressure dB(A) @ 3m(1) |
|---|---|---|---|
| PIV ONE PLUS+ | 400 | 162 | 43 |
- 220-240V ~ 50/60Hz.
- Air performance measured according to ISO 5801 a 230V 50Hz, air density 1,2Kg/m3 .
- Data measured in the TÜV Rheinland recognised laboratory in Aerauliqa, A company of Elta Group.
- (1) sound pressure level @ 3m in free field, for comparative purposes only.
Each PIV ONE Plus+ unit has a 5-Year parts-only warranty. For full details and if you need to claim, check here.
