MOXA MEV
Whole House Mechanical Extract Ventilation Unit (MEV)
A continuous running centralised MEV that extracts stale air from different rooms at the same time. The built in humidity sensor automatically boosts speed when needed.
Improves indoor Air Quality
Better health and reduce heating costs. Find out more
Built-in humidity sensors automatically boosts fan speed when needed.
Low noise operation due to installation being away from internal grilles.
Adjustable speed and humidity set point.
EC brushless motors significantly reduce electricity consumption.
Need some help?
Email or call the team on 01384 275771
Want to know the cost of using this fan? Put your rate in our running cost calculator.
The MOXA centralised MEV fan unit is a complete game-changer in the realm of home ventilation. Its unparalleled efficiency and convenience offer a revolutionary solution. By centralising the extraction point and employing a single, highly efficient fan to extract from all bathrooms, ensuites, kitchens and utility rooms, it effectively eliminates moisture, odours and pollutants from multiple areas of your home, guaranteeing optimal indoor air quality.
This advanced system operates continuously to maintain a fresh and healthy indoor environment. When the humidity threshold is detected, the fan automatically boosts its speed, effectively reducing excess moisture and preventing condensation buildup. This intelligent feature ensures optimal air quality, minimises the risk of mould and mildew growth, and promotes a comfortable living space.
In addition to improving air quality, the MOXA units excel in providing acoustic comfort. Designed with noise reduction in mind, it incorporates a sound-insulated casing and low-vibration motor mounts to minimise operational noise. By also locating the fan away from the user and maintaining a balanced airflow, MOXA units create a quiet and comfortable indoor environment. The customisable settings allow installers to fine-tune fan speeds according to the resident’s need, further enhancing acoustic comfort.
Features and Benefits
-
Easy Installation and Maintenance: A plug-and-play design ensures this MEV unit offers hassle-free installation and straightforward maintenance.
- Quiet Operation: The MOXA operates quietly, providing efficient ventilation without causing disturbances or noise pollution. Enjoy a more comfortable living environment.
- Low Energy Consumption: Utilising an advanced low-power EC motor that helps save energy without compromising on performance. It provides effective ventilation while keeping energy costs down.
- Continuous Running: unit removing pollutants, moisture, and odours from your home. This ensures a consistent and healthy indoor environment.
- Humidity Sensor: With its built-in humidity sensor, the MOXA detects excess moisture levels and automatically boosts fan speed by 15% when the threshold is reached. This effectively reduces humidity, minimising condensation and preventing mould and mildew growth.
- Multiple modes of operation allow users complete control and installers flexibility for multiple applications.
Specification
- Galvanised sheet steel casing powder-coated in white RAL 9010
- Durable, solid ABS plastic top cover.
- The unit is designed for continuous running and features a highly efficient EC motor with integral thermal protection, mounted on sealed-for-life ball bearings and anti-vibration supports.
- The unit is equipped with an integral humidity sensor. When the humidity threshold is reached, the fan speed is increased by 15%. When the humidity level returns below the threshold, the fan continues to run at increased speed for a pre-set period of time.
- Multiple extract points to simultaneously extract condensation from wet rooms and stale air from kitchens and utility rooms.

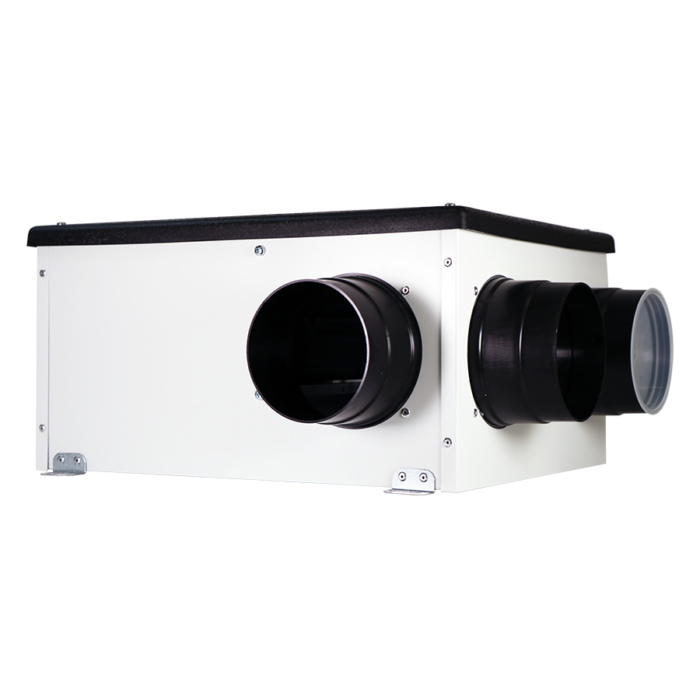

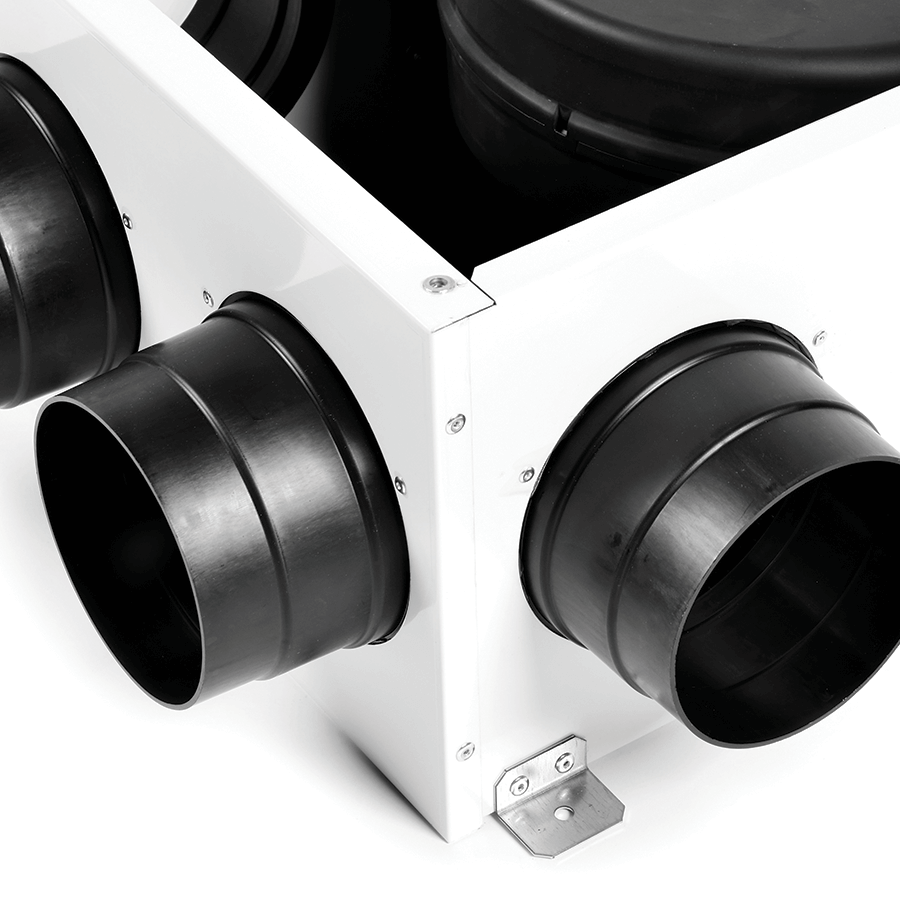

- Ø125 outlet to exhaust air to the outside while 4xØ125 inlets draw stale air out from inside.

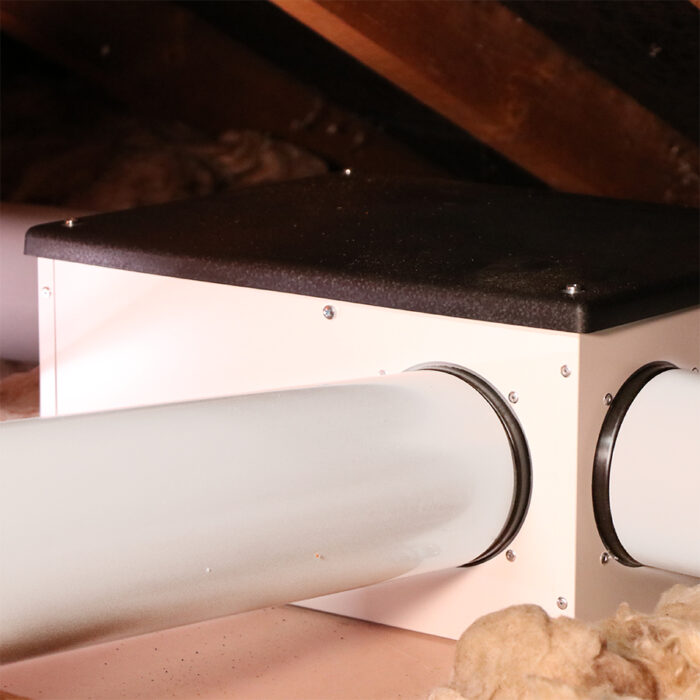

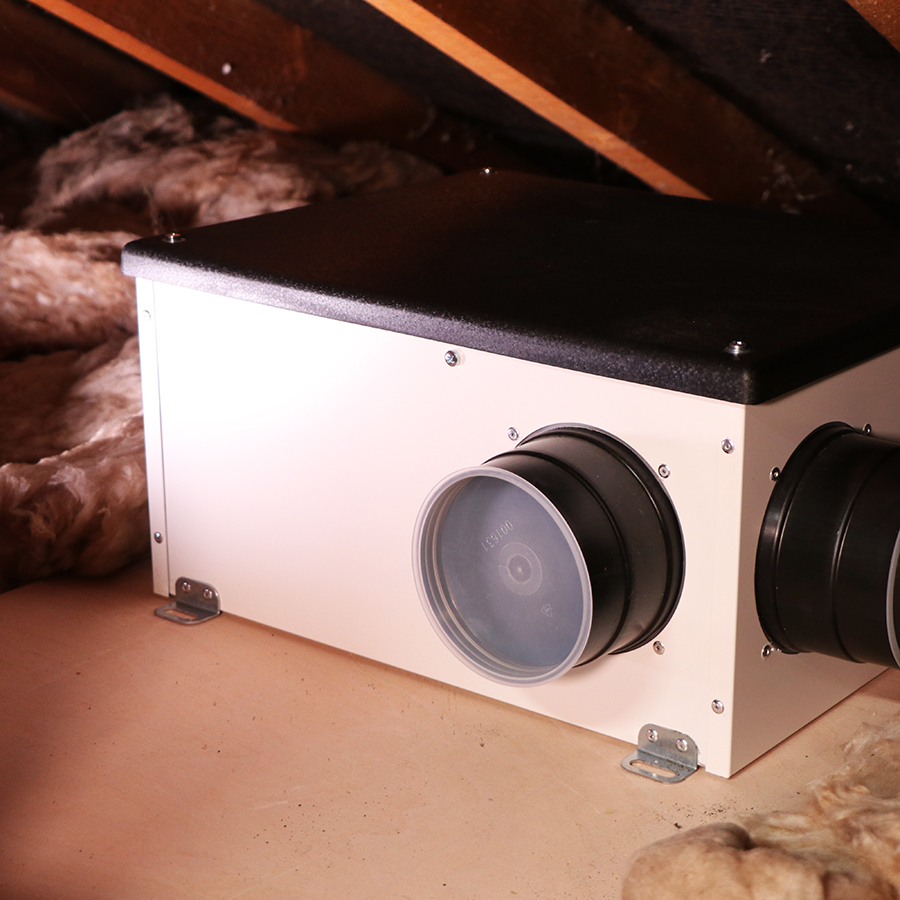

- Flexible wall-fixing eyelets that are part of the fan body and a compact profile to fit in narrow spaces like false ceilings, loft spaces or cupboards.
- The top cover is easily removable for inspection and maintenance.
- Acoustic self-extinguishing foam lining for sound attenuation.
- IPX4 protection degree.
Operation
- One speed.
- Two speed with remote switch or sensor (e.g. AERAULIQA PIR SENSOR).
- Variable speed with AERAULIQA MEV CONTROL KNOB WITH SWITCH.
- Variable speed with external 0-10v control input.
- 3 speeds with remote selector AERAULIQA 3 SPEED KNOB.
Tested
- Tested to the latest standards: units are tested in the TÜV Rheinland recognised laboratory at Aerauliqa, meaning accurate, up to date information on electrical safety, performance and noise level that can be relied upon.
- Designed and manufactured in accordance with EN60335-2-80 (Low Voltage Directive) and the EMC Directive (Electromagnetic Compatibility).
Model | Weight kg |
---|---|
MOXA MEV | 6.4 |
Dimensions in mm.
100%
80%
40%
25%
Trimmer Position | Speed % | W max | m3/h max |
---|---|---|---|
A | 25 | 4 | 135 |
B | 30 | 4 | 144 |
C | 40 | 7 | 205 |
D | 60 | 14 | 286 |
E | 80 | 24 | 350 |
F | 90 | 30 | 365 |
G | 100 | 36 | 383 |
Each MOXI MEV has a 5-Year parts-only warranty. For full details and if you need to claim, check here.
