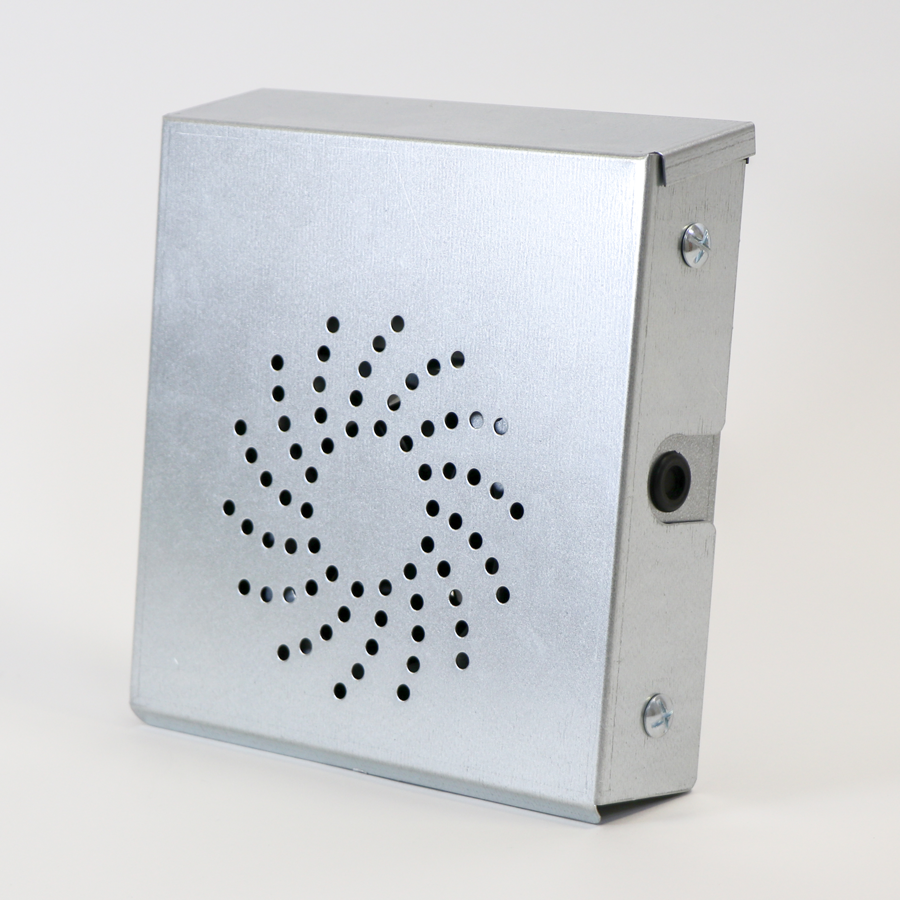

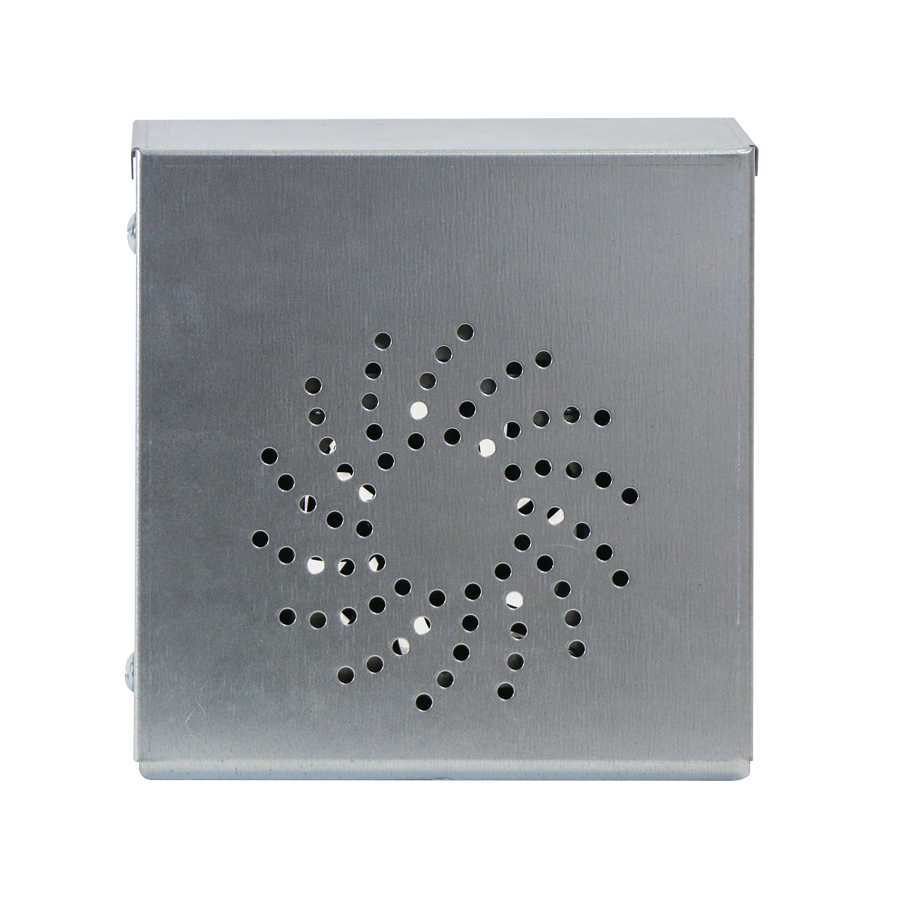

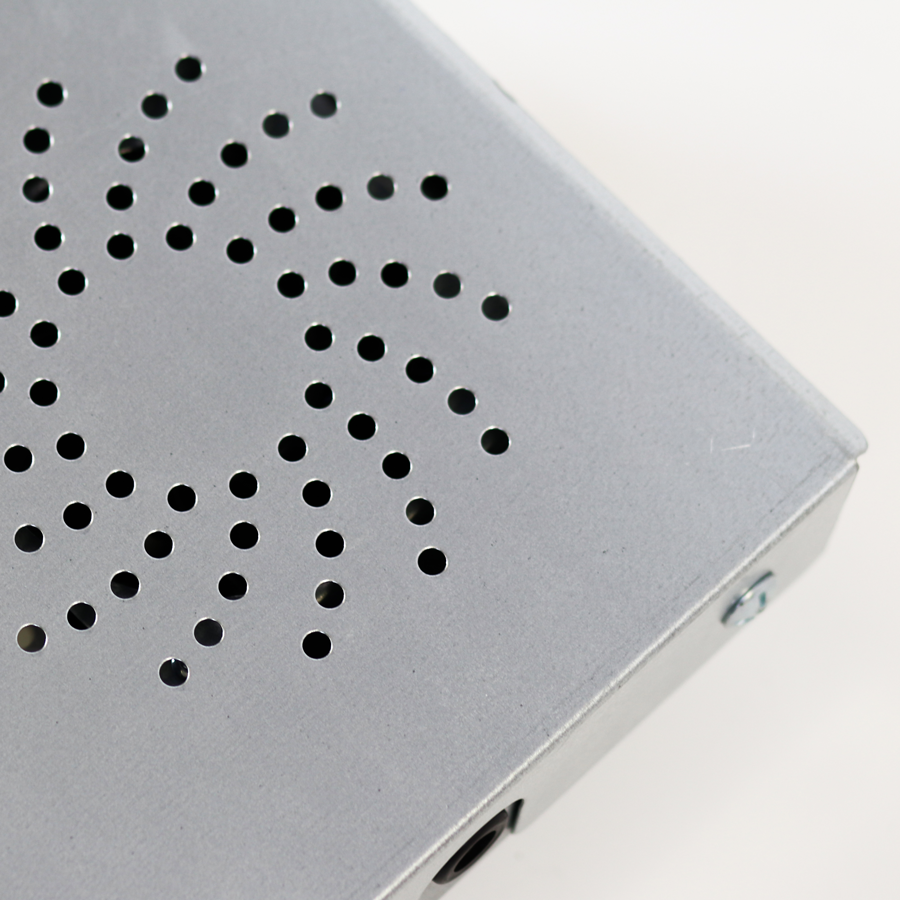

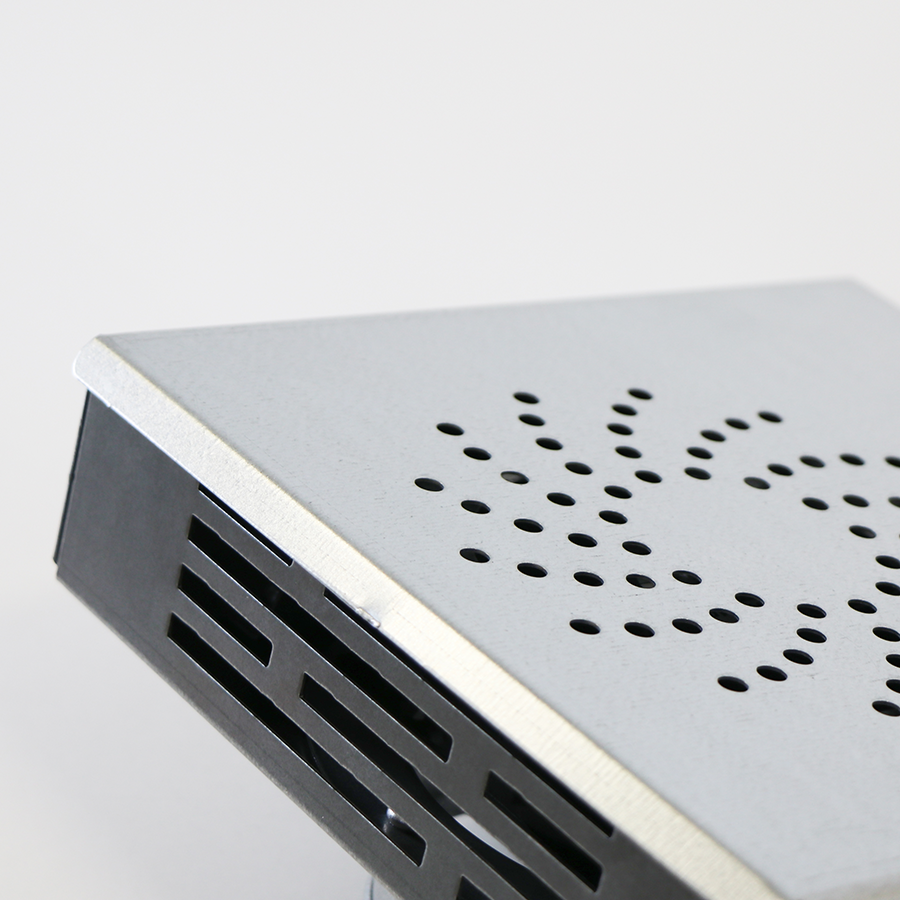

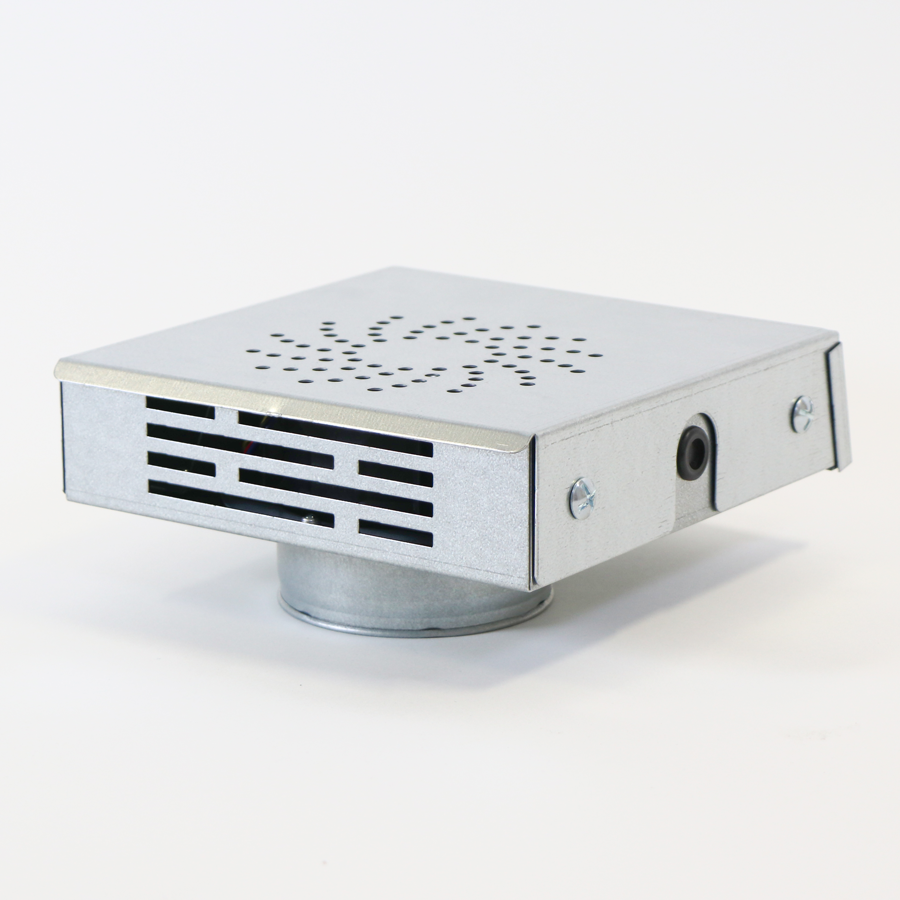

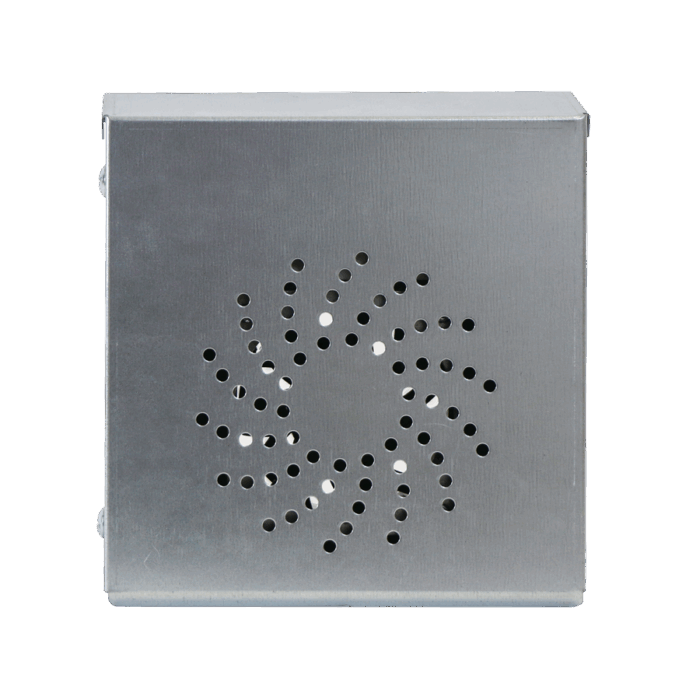

Mori WMF100-E
Weatherproof Subfloor Ventilation Extract Fan
Helping to provide humidity control, Radon gas control and air movement in hard to naturally ventilate, subfloor spaces.
Creates a controlled airflow path across the subfloor void, drawing fresh air in through perimeter openings and removing moisture-laden air through the MORI WMF100-E.
Low energy fan/motor assembly with typical electrical running costs under £9 per year for continuous operation.
Adjustable low running and Boost speeds for perfect ventilation in a wide variety of installations.
Improves airflow beneath the floors of a building to prevent moisture buildup, reduce humidity, and promote a healthier indoor environment.
Need some help?
Email or call the team on 01384 275771
Want to know the cost of using this fan? Put your rate in our running cost calculator.
The MORI WMF100-E is a weatherproof fan unit for use when an easily accessed, externally mountable, continuously running ventilation fan is required e.g. to provide subfloor ventilation.
Many subfloor spaces have insufficient natural ventilation with the only option to provide some form of mechanical ventilation to the space. The MORI WMF was specifically designed for such applications.
The combination of wide airflows and various control modes provides the sub-floor ventilation system designer with more choice and flexibility.
Features and Benefits
- Unique weatherproof design allowing the fan to be mounted outside making installation and maintenance easier than with subfloor mounted fans.
- Low energy fan/motor assembly with typical electrical running cost under £9 per year for continuous operation.
- Designed to provide: Continuous fan operation at an adjustable trickle speed, Adjustable Boost speed activated by an external switch (where fitted), Extract Ventilation
mODES OF Operation
The integral controls provided as standard allow for the fan to be set at the installation stage to operate at a trickle speed/airflow. When connected to a boost switch, on closure of the boost switch, the fan will run at a determined speed set internally within the fan at set up; when the boost switch is open the fan will revert to trickle speed.
Product Codes
| Product | SKU |
|---|---|
| MORI WMF100-E | ET-050001/A |
Please see the overview document for dimensional data.
Please see the overview document for performance data.
Each Mori WMF unit has a 5 Year Warranty. For full details and if you need to claim, check here.
Accessories
Controls
Perfect for rooms and areas that are prone to high moisture and condensation
