Elta Trade LUXE

Luxe Extractor Fan

High Quality Intermittent Extract Fan

A stylish, contemporary intermittent extractor fan. Perfect for wall, ceiling or window* mounting, extracting directly outside or through short length ducting.

Improves indoor Air Quality

Better health and reduce heating costs. Find out more

Removable front fascia for easy cleaning.

Integral back-draught shutter reduces heat loss.

Low power consumption; 100mm model consumes less than 8 watts.

Models available with adjustable run-on timer and humidity sensor.

Need some help?

Email or call the team on 01384 275771

Want to know the cost of using this fan? Put your rate in our running cost calculator.

A stylish, contemporary intermittent extractor fan. Perfect for wall, ceiling or window* mounting, extracting directly outside or through short length ducting.

The Luxe is constructed of high-quality ABS that provides a long-lasting shock-proof and robust construction while being UV resistant. The unique design winglet-type impeller provides enhanced aerodynamic properties resulting in low noise and increased efficiency.

Suitable for continuous and intermittent running.

*The window mounting options require the window mounting kit.

Features and Benefits

  • Wall, ceiling and window mountable (window mounting requires window kit).
  • IPX4 rated.
  • Available with an adjustable run-on timer.
  • Available with an adjustable run-on timer and humidity sensor. The humidity sensor is adjustable from 50% to 95% RH.
  • Stylish and modern fascia which is easily removed for cleaning without the need for tools.
  • Optimised spigot support design prevents distortion and maximises airflow, while a strengthened guard ensures safety.
  • Integral back-draught shutter prevents airflow from returning into the room when the fan is not in use
  • Low power consumption; the 100mm model uses less than 8 watts of operating power.
  • Totally recyclable plastic components.

Specification

  • High-quality UV-resistant ABS body provides long-lasting, shock-proof construction.
  • White RAL 9010 colour.
  • The unique impeller design features winglets (like on an aeroplane wing) that provide low noise and increased efficiency.
  • The EC brushless motor is mounted on sealed-for-life ball bearings and features integral thermal protection.
  • Available with an adjustable run-on timer. Adjustable from 1 to 25min.
  • Available with an adjustable run-on timer and humidity sensor. The timer is adjustable from 1 to 25min. The humidity sensor is adjustable from 50% to 95% RH. This version features upgraded ball bearing motor.

Tested

  • Tested to the latest standards: units are tested in the TÜV Rheinland accredited laboratory at Aerauliqa (our sister company). Meaning accurate, up-to-date information on electrical safety, performance and noise levels that can be relied upon.
  • Designed and manufactured in accordance with EN60335-2-80 (Low Voltage Directive) and the EMC Directive (Electromagnetic Compatibility).

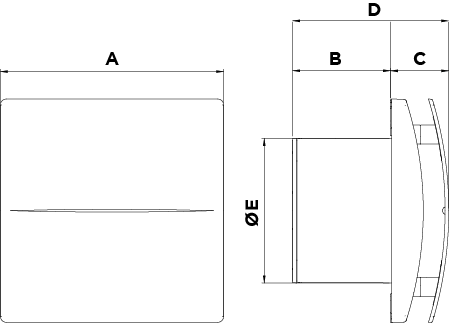

Luxe Dimensional Drawing

Model LUXE100 LUXE125 LUXE150
□A 164 184 218
B 70 81 97
C 46 48 52
D 116 129 149
ØE 99 119 148
Weight 0.6 0.9 1.2

LUXE100

LUXE125

LUXE150

Model LUXE100 LUXE125 LUXE150
Air-flow m3
/h max		 83 140 253
Static pressure Pa max 27 40 51
Power consumption W max 8 14 24
Sound pressure dB(A) @ 3m(1) 26 34 42
Ambient temperature °C max 50 50 50

  • 220-240V ~ 50/60Hz.
  • Air performance measured according to ISO 5801 a 230V 50Hz, air density 1,2Kg/m3 .
  • Data measured in the TÜV Rheinland recognised laboratory in Aerauliqa, A company of Elta Group.
  • (1) sound pressure level @ 3m in free field, for comparative purposes only.

Each Luxe unit has a 5-Year parts-only warranty. For full details and if you need to claim, check here.
