Jetflow SJMF
EC In-line Mixed Flow Circular Fan
Compact EC in-line mixed flow fan designed specifically for use with rigid or flexible ductwork. Perfect for residential, industrial and commercial installations.
Available in 7 sizes from 100mm – 355mm.
High-performance and energy-efficient brushless EC motors result in low SFP.
Integrated mounting foot simplifies installation
Easy control with industry-standard 0-10v connection. Allows quick connection to sensors and run-on timers.
Need some help?
Email or call the team on 01384 275771
The SJMF inline mixed-flow fan is a fast-fitting unit, saving you time whilst delivering on performance. This high-performance EC fan is mounted in line with the ducting, moving noise away from occupants.
Features and Benefits
- The EC brushless motor means even at full speed, its performance is smooth, quiet and super efficient.
- The double mixed flow impeller produces strong pressure at any speed, allowing the fan to slow down and deliver the exact performance needed. This reduces heat loss through over-ventilation.
- Detachable bracket on 150 to 315mm models for ease of installation.
- Speed control is achieved by removing the 3.5mm Jack plug hub and fitting supplied cable. This can then be paired with optional accessories and sensors for complete control.
- Easy Installation, fitted with a 1.5 metre Mains lead complete with UK 3-pin plug, convenient for connecting to electrical sockets and providing a means of isolation/disconnection.
- Low power consumption at high performance resulting in Low Specific Fan Powers for Building Regulation Compliance.
Specification
- Manufactured with aluminium or cold rolled steel sheet, dependant on size.
- Brushless EC motors are fitted as standard. The IPX4 motor contains sealed-for-life heavy-duty NWB bearings. All motors are suitable for use in ambient air conditions up to +60℃.
- Features a directly driven, integrated, high-efficiency jet design double mixed flow impeller .
- Electrical connection via 1.5 metre Mains lead complete with BS1363-1 UK 3-pin plug BS1361 fuse 3A.
- Supplied suitable for fixed speed operation. A detachable 5-metre lead with a 3.5mm jack connection to the unit is supplied for connection to a remote potentiometer, 0-10VDC or PWM Circuit.
- Please note the design of the unit varies between 100mm, 125mm and 150mm units and above. This is due to airflow optimisation per size.
Quality Management
- Units are designed and manufactured with procedures as defined in BS EN ISO 9001.

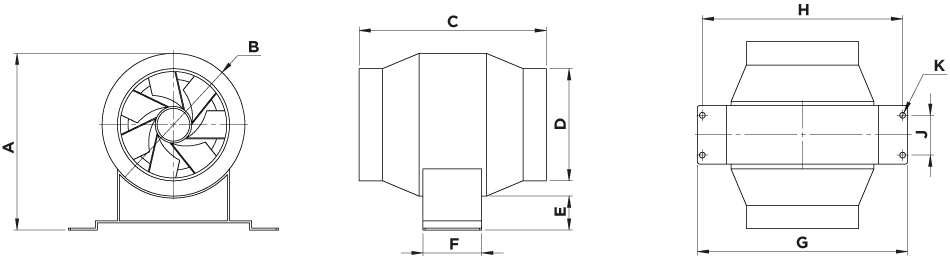

| Product Code |
A | ○B | C | ○D | E | F | G | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SJMF100 | 150 | 125 | 159 | 98 | 25 | 51 | 184 | 175 | 37 | 5 | 1.1 |
| SJMF125 | 151 | 126 | 110 | 124 | 26 | 51 | 184 | 175 | 37 | 5 | 1.1 |
| SJMF150 | 173 | 153 | 165 | 150 | 21 | 80 | 187 | 175 | 37 | 5 x 8 SLOT | 1.6 |
| SJMF200 | 223 | 203 | 220 | 200 | 22 | 105 | 221 | 210 | 39 | 5 x 8 SLOT | 2.6 |
| SJMF250 | 274 | 254 | 210 | 250 | 22 | 105 | 300 | 288 | 26 | 5 x 8 SLOT | 3.7 |
| SJMF315 | 356 | 317 | 290 | 313 | 39 | 164 | 360 | 336 | 68 | 9 x 14 SLOT | 8.5 |
| SJMF350 | 401 | 358 | 330 | 353 | 45 | 184 | 405 | 380 | 77 | 9 x 14 SLOT | 12.0 |
Representitve data of maximum performance. For more detailed performance at multiple speeds, SFP and electrical data, consult the product data sheet.
| Product Code |
Speed r/min |
Airflow m³/s @ 0 Pa | Overall Eff % |
Input kW |
Peak Amps |
dBA @ 3m (outlet) |
|---|---|---|---|---|---|---|
| 1. SJMF100 | 5000 | 0.067 | 32.1 | 0.021 | 0.24 | 47 |
| 2. SJMF125 | 5000 | 0.080 | 42.7 | 0.027 | 0.26 | 48 |
| 3. SJMF150 | 4980 | 0.144 | 61.0 | 0.049 | 0.39 | 51 |
| 4. SJMF200 | 3740 | 0.269 | 64.9 | 0.100 | 0.79 | 52 |
| 5. SJMF250 | 3195 | 0.446 | 64.6 | 0.172 | 1.30 | 56 |
| 6. SJMF315 | 3000 | 0.815 | 57.9 | 0.375 | 2.71 | 62 |
| 7. SJMF355 | 3000 | 1.240 | 67.6 | 0.538 | 3.80 | 66 |
Data provided is at standard air density of 1.2 kg/m³.
ErP data in accordance with Regulation (EU) 1253/2014. Product category is NRVU. Measurement category used to determine energy efficiency: D.
A variable speed drive is integrated within the fan.
Peak Amps @ 230V / 1PH / 50Hz.
The overall A-weighted sound pressure level is at a distance of 3m with spherical free-field propagation. It is expressed in dB re-20μPa and is presented for comparative purposes only.
Suitable for operation from 2V control signal. For performance, refer to our selection software.
Each Jetflow SJMF unit has a 2-Year parts-only warranty. For full details and if you need to claim, check here.
