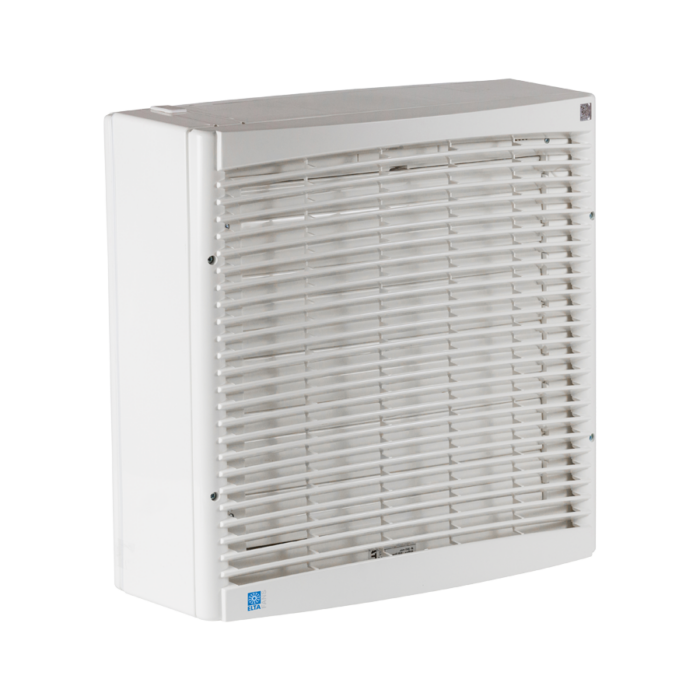

Classic SAX is manufactured from shockproof, heat-resistant white plastic and is suitable for easy installation into windows, walls or ceilings.
All units come supplied with a telescopic wall liner for installations between 240mm and 315mm and 5m 4 core cable to assist installation.
The motor has sealed for life, self-lubricating bearings and are double insulated with in-built thermal overload protection.
The fan is suitable for operating temperatures up to +40C.
- A models feature an automatic shutter.
- AR models feature an automatic shutter and a 5-speed reversible controller.
- ARB models feature an automatic shutter, a 5-speed reversible controller and an adjustable wall sleeve.
| Model | Fan Size | A | B | C | D | E | F | Weight kg |
|---|---|---|---|---|---|---|---|---|
| SAX23/9A | 9 | 340 | 200 | 40 | – | – | – | 5 |
| SAX23/9AR | 9 | 340 | 200 | 40 | – | – | – | 6 |
| SAX23/9ARB | 9 | – | – | – | 415 | 40 | 240-315 | 11 |
| SAX30/12A | 12 | 420 | 230 | 40 | – | – | – | 8 |
| SAX30/12AR | 12 | 420 | 230 | 40 | – | – | – | 8 |
| SAX30/12ARB | 12 | – | – | – | 495 | 40 | 240-315 | 15 |
| Model | Speed r/min | Airflow m³/s | Pressure Pa | Peak Amps | Input W | dBA @3m |
|---|---|---|---|---|---|---|
| SAX23/9* | 1350 | 0.23 | 75 | 0.20 | 45 | 49 |
| SAX30/12* | 1200 | 0.53 | 80 | 0.39 | 90 | 51 |
- Data provided is at standard air density of 1.2 kg/m³.
- Exempt from ErP 327/2011 of the European Parliament. All units are below 125W.
- Peak Amps @ 230V / 1PH / 50Hz.
- The overall A-weighted sound pressure level is at a distance of 3m with spherical free-field propagation. It is expressed in dB re-20μPa and is presented for comparative purposes only
- * Units that are suffixed with an A include a silent operated shutter. These are either intake only, extract only or both (in conjunction with a double pole switch). Units that are suffixed with an AR and ARB include silent operated shutters. These units are five speed extract and supply, operated through a control provided with the unit. Units suffixed with ARB include a telescopic steel wall liner
Each Classic SAX unit has a 1-Year parts-only warranty. For full details and if you need to claim, check here.
